Read MoreEvent wiring often looks simple on a floor plan, yet conditions become less straightforward once several pieces of equipment need power or signal connections from different directions. Cables may cross walking areas, pass near equipment, or run between a stage and a control position, making cable organization part of the setup process.

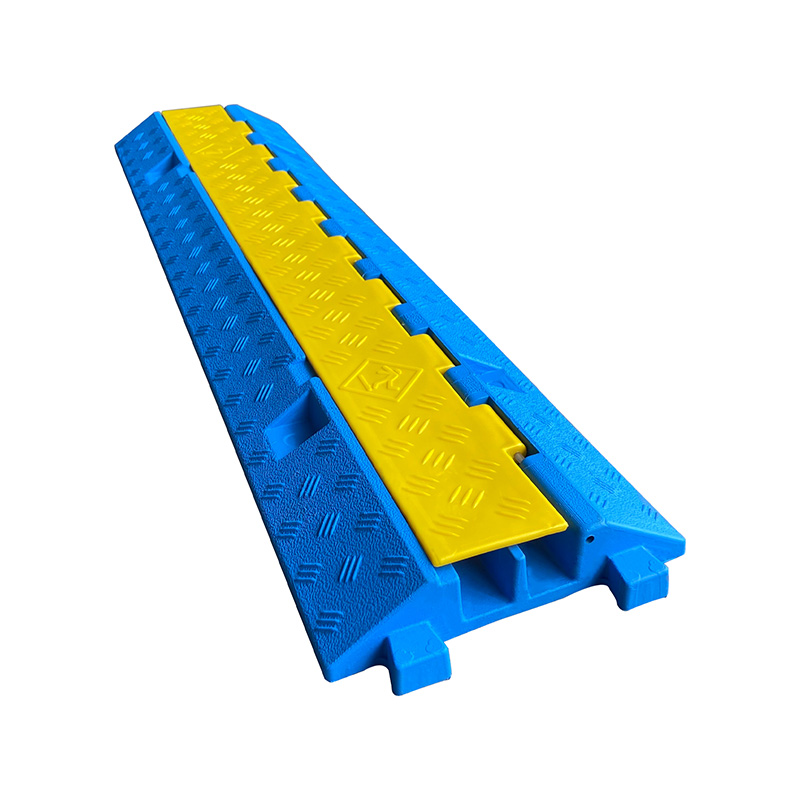

A 2 Channel Cable Ramp provides two separate cable paths, giving installers a way to divide wiring into two groups rather than placing every cable together. Such an arrangement can work well when the event layout has a clear wiring structure and only a small number of cable groups need to travel across the floor.
A 3 Channel Cable Ramp adds another path, creating room for a third cable group. Extra separation can become useful where equipment connections are more varied, especially when several routes need to remain distinct.
Channel count should therefore be considered alongside the actual wiring plan. Simply choosing a ramp with more channels does not automatically make installation easier. Available floor space, cable size, route direction and the relationship between connected equipment all affect the practical choice.
Two-channel designs suit wiring arrangements where cables can be divided into two clear groups. For example, one route may carry cables toward equipment on one side of a temporary setup, while another route carries a separate group toward a different area.
Keeping groups apart can make installation easier to follow. During setup or removal, installers can identify which cables belong to each route without having to sort a large mixed bundle.
A simple arrangement might involve:
Such a structure can also make sense in a compact event area where floor space is limited. Adding another channel takes up additional width, so a larger structure may create a layout problem when the available walking or working area is narrow.
Two channels may become less suitable when several cable groups need to travel independently. Placing too many cables into one path can make routing less organized, especially when cables have different sizes or need to leave the ramp at different locations.
For a straightforward event setup, a two-path arrangement can provide a clear connection between cable grouping and floor routing without adding an unnecessary third path.
A three-channel design becomes relevant when wiring needs cannot be divided naturally into only two groups. An event may contain several equipment areas, with cables moving toward different destinations. Keeping separate groups within individual channels can make routing easier to manage.
An additional channel may also help when different types of connections need separate paths. For instance, power-related cables and other connection cables may have different routing requirements, making a third space useful for keeping groups apart.
Channel separation can provide practical benefits during installation:
Still, cable quantity alone does not determine the need for three channels. Several cables may fit into two suitable paths when their sizes and destinations allow sensible grouping. A third path becomes more meaningful when the wiring plan itself contains three distinct groups.
For temporary events, flexibility can also matter. Equipment may be repositioned during setup, causing cable routes to change. Having another independent path can make such adjustments easier in some layouts, especially when routes approach the ramp from different directions.
Cable grouping provides a more useful starting point than simply counting individual cables. One cable may serve a particular piece of equipment, while another group may connect several items located in the same area. Looking at destination and function helps determine how many separate routes are actually needed.
A two-channel arrangement might divide wiring according to two equipment zones. A three-channel arrangement can create three zones or keep one additional cable group separate from the others.
Cable size also needs attention. A channel may contain several cables, yet available space depends on their physical dimensions and how they enter and leave the ramp. Forcing cables into a narrow path can make installation difficult and may interfere with proper positioning.
Before selecting a ramp, installers can consider:
Thinking about wiring in groups makes the comparison between two-channel and three-channel designs more practical. Channel count becomes a response to the layout rather than an isolated product feature.
Venue arrangement can change the usefulness of each design. A stage area with equipment positioned close together may have relatively simple cable routes, while a larger event floor may require cables to travel toward several different areas.
Around a stage, cables may run from equipment toward a side control position or another service area. A two-channel arrangement can suit such a route when two main groups are sufficient.
Exhibition spaces can present a different situation. Several displays may be positioned along one area, with separate connections needed for different groups of equipment. A third channel can provide another route when two paths would require excessive mixing.
Entrances and walking areas create another consideration. Floor space may be restricted, so ramp width needs to fit the available route without unnecessarily occupying additional pedestrian space.
Rather than judging a ramp from the size of the event alone, it is more useful to look at the actual relationship between equipment and cable routes. A small event can still need three separate paths, while a larger setup may operate with two clearly organized groups.
Adding a third channel changes how cables can be divided across a temporary event route. Rather than simply providing extra space, another path creates an additional option for separating wiring according to destination, function or direction.
A two-channel arrangement may divide cables into two broad groups. Such grouping works well when routes remain relatively simple. Once a third cable group needs to travel independently, combining it with another group can make installation less convenient, especially when cables leave the route at different points.
A three-channel design can provide another way to organize the same floor area. One channel may serve equipment positioned near a stage, another may carry connections toward a control area, while the remaining path handles a separate group.
| Consideration | 2 Channel Cable Ramp | 3 Channel Cable Ramp |
|---|---|---|
| Cable grouping | Two main groups | Three main groups |
| Routing flexibility | Suits simpler layouts | Allows another separate route |
| Floor space | More focused layout | Requires additional width |
| Cable organization | Suitable for clear grouping | Useful for varied grouping |
| Re-routing | Fewer independent paths | More options for route changes |
Extra capacity still needs to match the physical space available. A wider ramp can affect walking routes, equipment placement and access around a temporary installation. Channel quantity should therefore be considered together with ramp dimensions.
Cable purpose can influence how groups are arranged. Event equipment may require several types of connections, and placing every cable into one shared route can make later identification or adjustment harder.
With two channels, installers may need to combine some cable groups based on their destinations. Careful grouping can keep such an arrangement manageable where routes are simple.
A three-channel structure creates another separation option. One group can remain independent while two other groups share the remaining channels according to the layout.
Practical planning can include:
Cable purpose does not mean every type needs its own channel. Actual installation conditions remain important. A route with limited cable volume may function well with two channels, while a more varied wiring arrangement can benefit from a third path.
Different event areas create different cable routing patterns, so channel selection needs to follow the wiring arrangement rather than the event name alone.
Small stage equipment areas
A stage with equipment concentrated in one location may have two clear cable groups. A 2 Channel Cable Ramp can provide enough separation where cables travel along a common route toward two main destinations.
Temporary exhibition areas
Exhibition layouts can involve several equipment groups positioned across a floor. When three separate routes need to remain organized, a 3 Channel Cable Ramp may provide a more suitable arrangement.
Equipment concentrated in one working area
Several devices may share a relatively short route. Cable grouping can be based on destination, making two channels practical even when individual cable numbers appear high.
Routes moving in different directions
A third channel may help when cable groups need to leave a common ramp at different points. Separate paths can make route changes easier to manage during setup.
A useful selection process starts with drawing the cable paths rather than choosing a ramp immediately. Once destinations, entry points and exit points are clear, the required number of channels becomes easier to identify.
Cable quantity provides only part of the information needed for selection. Physical size and routing direction can change how much space a cable group requires.
Before installation, several points can be reviewed:
Checking cable dimensions is particularly useful because a channel that appears suitable by cable count may have limited usable space once cables are arranged inside it.
Entry and exit points deserve equal attention. A ramp can have enough internal room while still being inconvenient when cables need to leave the route at several different positions.
A 2 Channel Cable Ramp and a 3 Channel Cable Ramp address different levels of cable organization rather than representing a simple difference in capacity. Two channels create a clear division for relatively straightforward wiring, while three channels allow an additional group to remain separate.
Choice can be guided by three practical questions:
In practical terms, two channels suit a wiring plan that can be divided into two manageable groups. Three channels become more relevant when a third route has a clear purpose. Looking at cable size, destination, floor space and route direction together gives a more realistic basis for choosing between the two designs.
